COV-SPRAYER-HV High Volume Sprayer

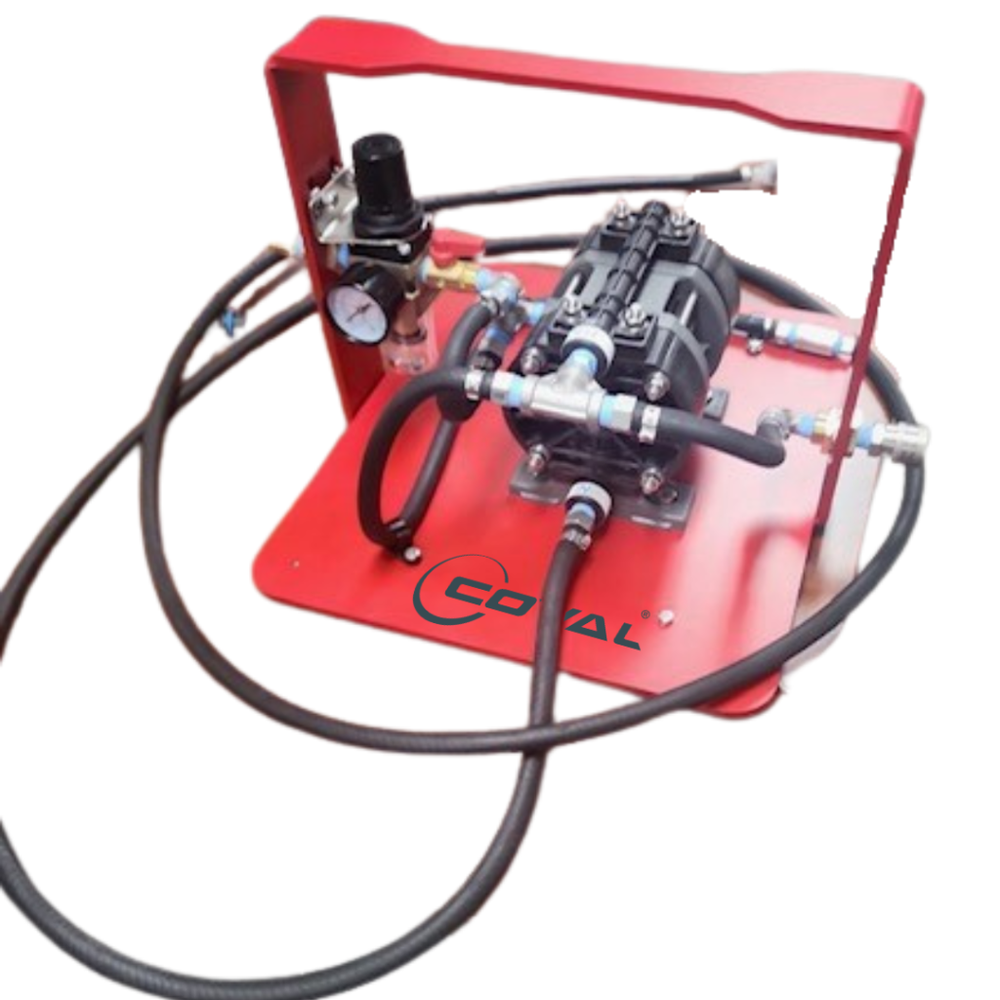

Coval SP-HV Industrial Sprayer
The Coval SP-HV is a high-volume diaphragm sprayer engineered for large-area coating and sealing jobs. Its compact, drum-mount design features a 150-ft hose, 28-inch locking spray wand, and a durable powder-coated steel frame. With a Teflon-coated pump and preset 40 PSI regulator, it delivers smooth, consistent application of Coval coatings, densifiers, and non-acidic chemicals—covering up to 50,000 sq ft in four hours with minimal crew effort.
$2,199.00
1 in stock
Product Info
Coval SP-HV Industrial Sprayer
High-Volume, Professional Spraying System for Coatings, Sealers, and Dyes
The Coval SP-HV Industrial Sprayer delivers an efficient and cost-effective way to apply coatings, sealers, and finishes across large-scale concrete and industrial flooring projects. Designed with diaphragm pump technology—the industry standard for moving high-volume materials—it’s built for durability, precision, and consistent performance.
Professional-Grade Design
-
Powder-coated steel frame with an easy-carry handle, non-slip rubber feet, and grounding chain.
-
Compact drum-mount base fits neatly on top of a 55-gallon drum.
-
150-foot flexible spray hose provides a 300-foot wet-edge spray radius for continuous coverage.
-
28-inch spray wand with locking trigger reduces hand fatigue during long jobs.
-
Includes a large full-cone spray tip (interchangeable for multiple spray patterns).
Reliable Performance
-
Self-priming Teflon-coated pump with EPDM seals—compatible with Coval coatings, densifiers, acetone dyes, and most non-acidic chemicals.
-
Rated for 30 million air cycles and 50 million diaphragm cycles for long service life.
-
Preset 40 PSI regulator maintains a constant 30 PSI spray pressure for smooth, even application at 0.6 GPM.
-
Integrated anti-spray pulse overflow line ensures consistent flow.
-
QR code on frame links to complete pump instructions and service documentation.
Productivity You Can Measure
Achieve exceptional production rates of up to 50,000 square feet in four hours per pump system, allowing smaller crews to handle large jobs quickly and efficiently.
Operation Made Simple
-
Connect to a compressor rated 4–6 CFM at 100 PSI.
-
Set the regulator to 40 PSI (factory preset).
-
Place the suction line in your Coval product container.
-
Test spray to purge air and confirm even flow.
-
Spray side-to-side in a smooth, overlapping pattern for consistent coverage.
-
When finished, flush the system with acetone and store dry for next use.
Chemical Compatibility
✅ Compatible: Coval coatings, cleaning chemicals, densifiers, acetone-based dyes, and most non-acidic products
❌ Not compatible: Xylene, Benzene, or Toluene-based materials
